Engine Guard

Single Temp Sensor and Voltage Meter or Low Oil Pressure Alarm

Single Temp Sensor and Voltage Meter or Low Oil Pressure Alarm

SKU: EG01-3

Regular price $129.00 AUD
Regular price Sale price $129.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

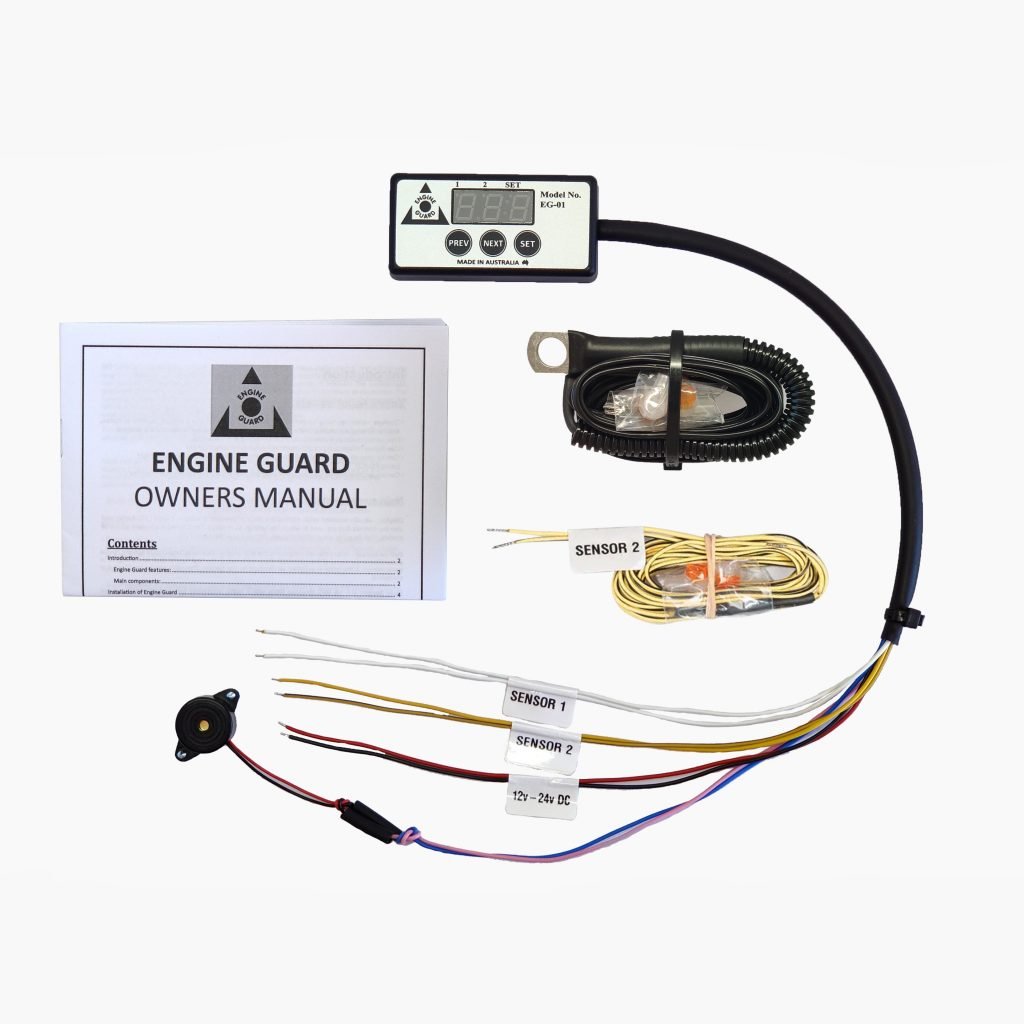

Includes:

  • 1 x Digital Display Unit
  • 1 x Bolt-on Temperature Sensors with 5m cable
  • 1 x Voltage / Low Oil pressure alarm interface with 5m cable
  • Wiring loom, water resistant connectors
  • Owner’s Manual

Digital engine temperature alarm with single bolt-on sensor (INPUT 1) with user programmable second input (INPUT 2), either:

Digital volt meter with optional high or low voltage alarm.

Measures voltage in a range between 0v DC – 33v DC. The alarm set-point is user programmable for high or low voltage alarms. Great for dual battery set-ups (warns of overcharging or discharging that can cause damage to batteries), alternator monitoring, starting battery condition, etc. Simple to install- a single wire (supplied) can be connected to a voltage source using the same earth/negative as the Display. The voltage is then displayed on the digital display as INPUT 2.

Low oil pressure alarm

  • Connects to the standard oil pressure switch circuit (most vehicles use a single wire/normally closed system) and will trigger the buzzer when the low oil pressure warning light is illuminated.

This model is very versatile- ideal for fleet owners who may have contract drivers who are not familiar with the factory warning lights, etc.
