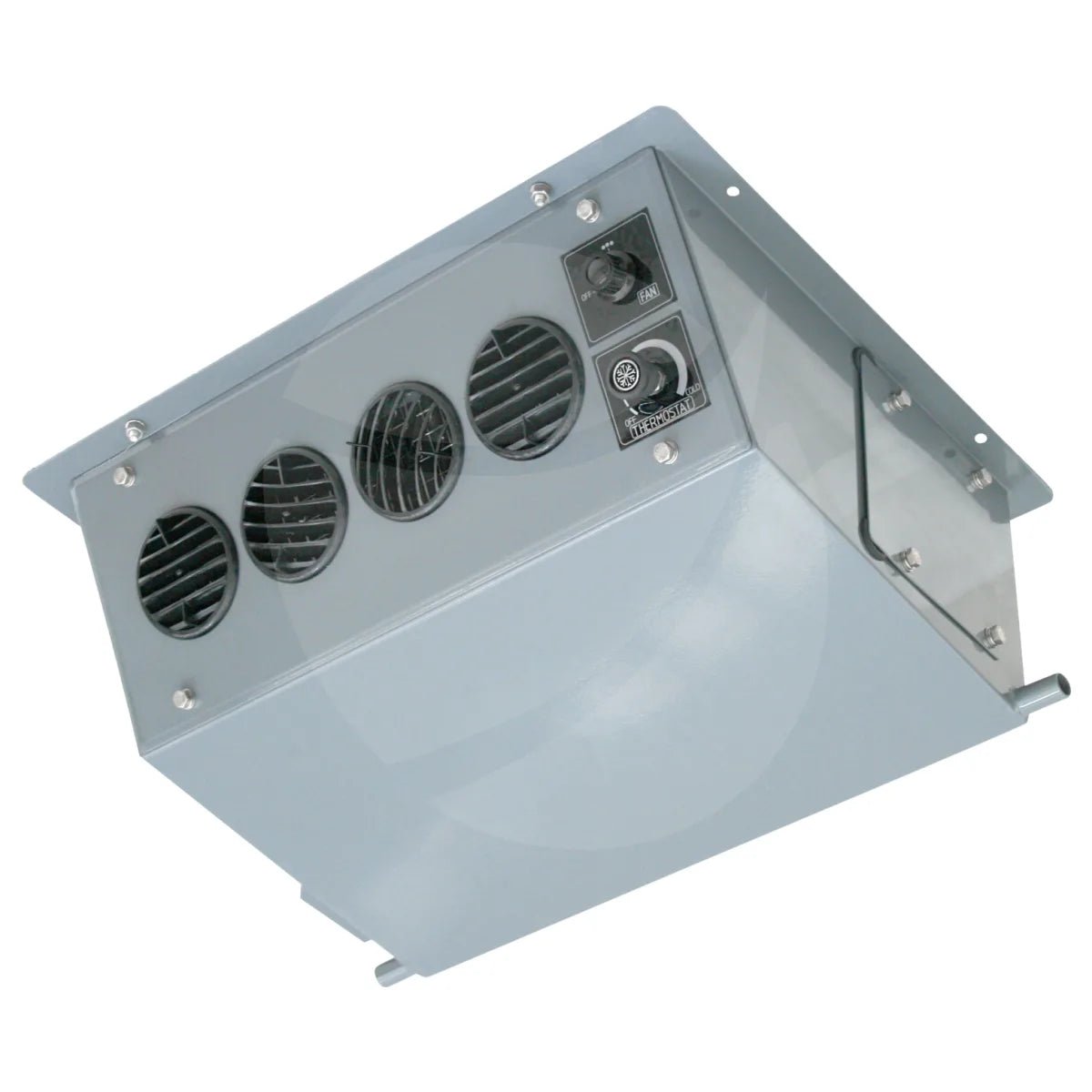

Sigma EC12H4 Ceiling Mount Evaporator 24V

Sigma EC12H4 Ceiling Mount Evaporator (24v)

The SIGMA E SERIES air conditioner range has been designed and developed for robust duty off road applications.

They have been refined to suit the applications of vibration, dust and high ambient.

These systems are engineered to suit small cabin rubber tyred vehicles and tracked vehicles with all components selected to provide reliable service and designed for ease of serviceability.

Specifications

• Cooling Capacity: 13648 BTU
• Air Flow: 233 CFM
• Fresh Air: 64CFM
• Power Supply: 24v
• Current Draw: 5a
• Refrigerant: R134a
• Maximum Ambient Temperature: 46ºC
• Weight (nominal): 10 Kg
• Dimension: L: 513mm / W: 415mm / H: 180mm
