RedDot R4500 Condenser Unit 24V

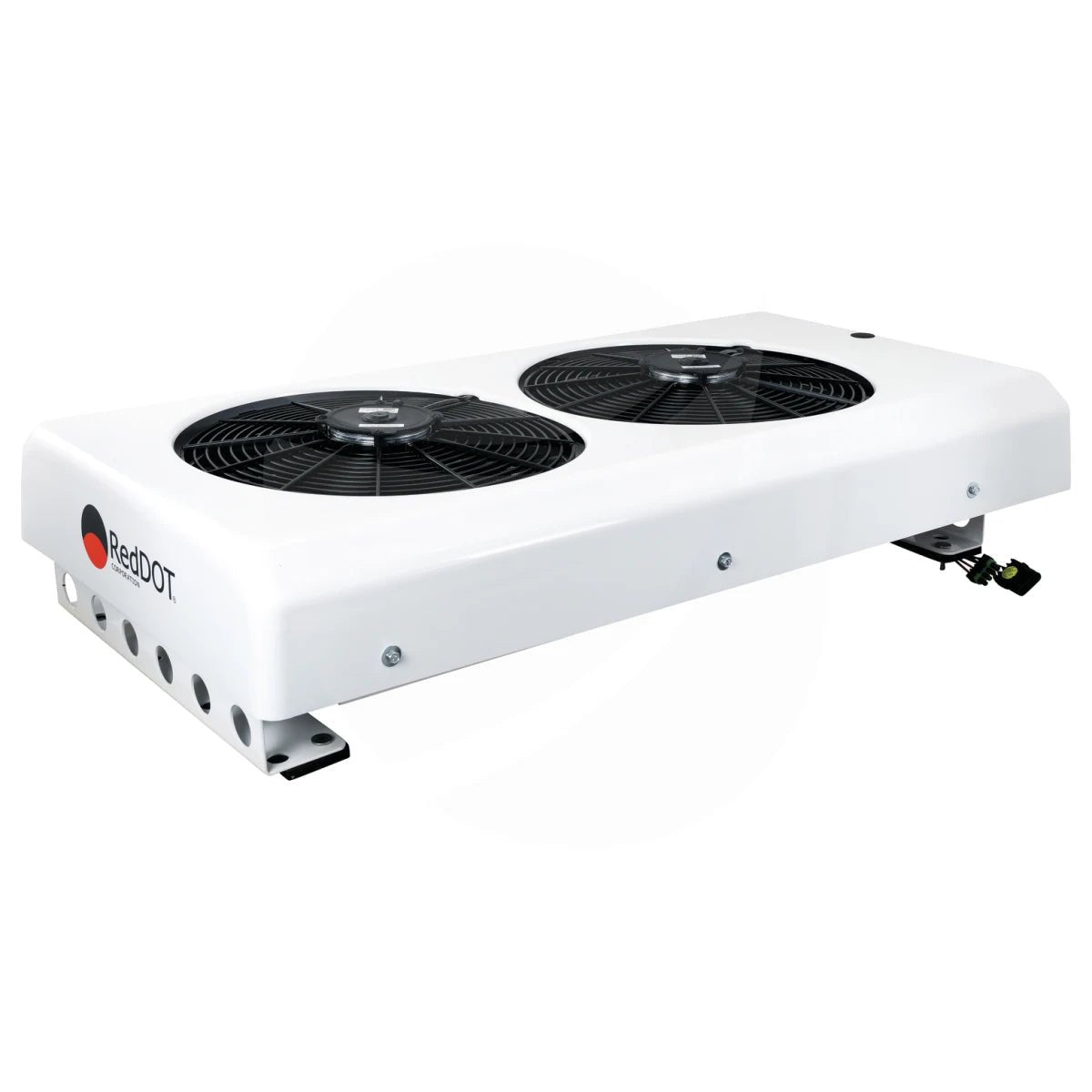

Red Dot R4500 Condenser Unit 24V

The R-4500 offers amazing performance for a light weight dual fan power condenser. Its high capacity gives the installer a condenser to match with high performance evaporators or dual evaporator systems. Using the latest motor technology the R-4500 has the lowest profile possible while maintaining a high output. At 45,000 BTU’s, the R-4500 is the largest of Red Dot’s line of “power” condensers.

Specifications:

• 24V Rooftop Condenser Assembly
• B.T.U./hr: 45,200
• Current draw: 30.3A @ 13.6V / 15.2A @ 27.2V
• Weight: 38kg
• Casing: plastic
• Width: 1086 mm
• Depth: 560 mm
• Height: 237 mm
