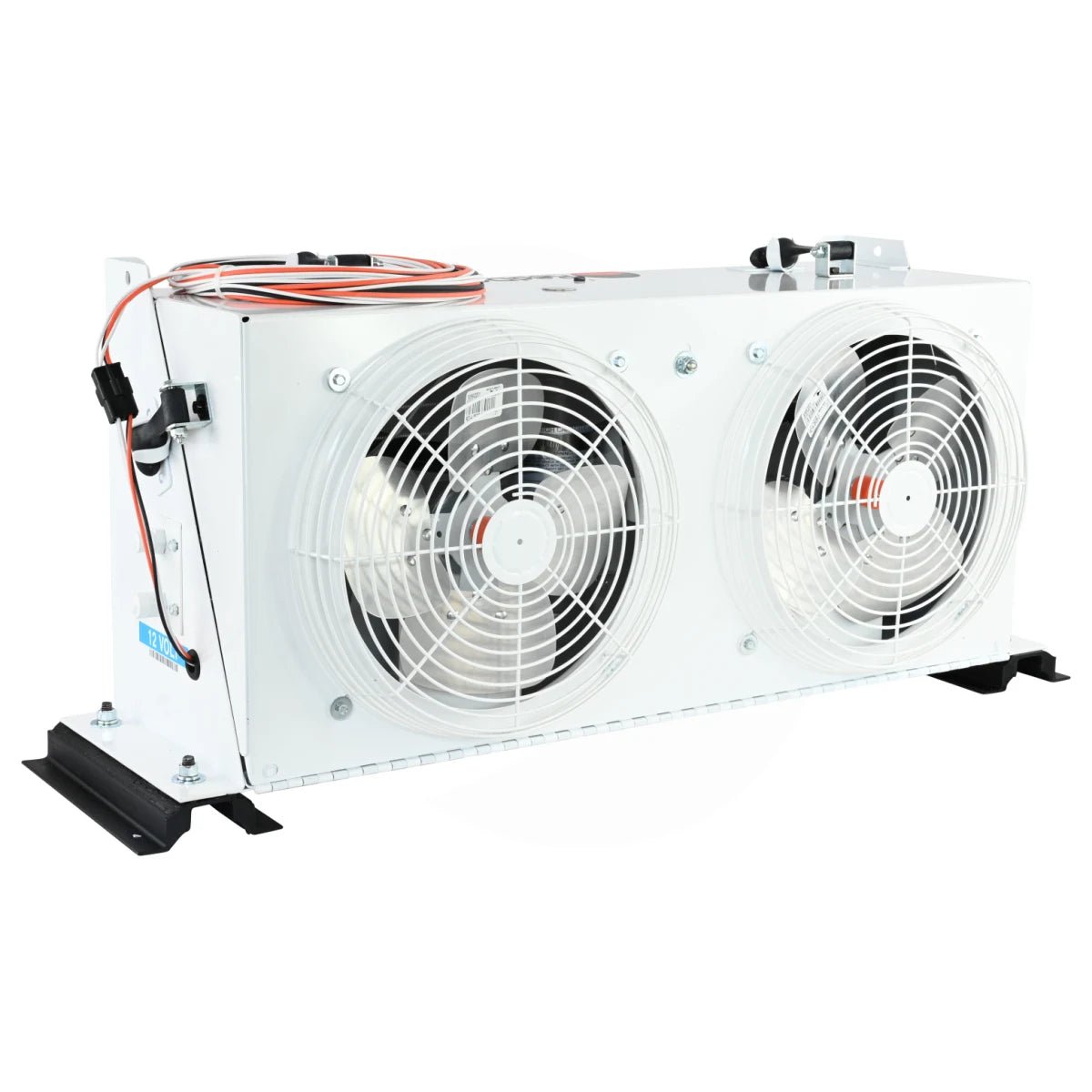

Red Dot R9730 Condenser Unit 24V

Red Dot R9730 Condenser Unit 24V

Remote Mounted Condenser For large construction, mining and agriculture applications. Built to withstand the punishment of off-road environments, the R-9730 is a rugged, heavy duty condenser with the tremendous capacity to support two cab air conditioner units. Rubber shock mounts absorb vibration while coated heavy gauge steel encases the working components. The R-9730 contains the Red Dot binary system protection switch attached to a high-capacity receiver drier. Two sealed permanent magnet fan motors provide extended life and help to minimize down time. If service is necessary, rubber hood latches provide simple access to all serviceable components.

Specifications:

• 24V Rooftop Condenser Unit
• B.T.U./hr: 44,500
• Air flow: 1500CFM
• Current draw: 26A @ 13.6V / 13A @ 27.2V
• Casing: steel
• Weight: 33.6kg
• Width: 955 mm
• Depth: 259 mm
• Height: 387 mm
