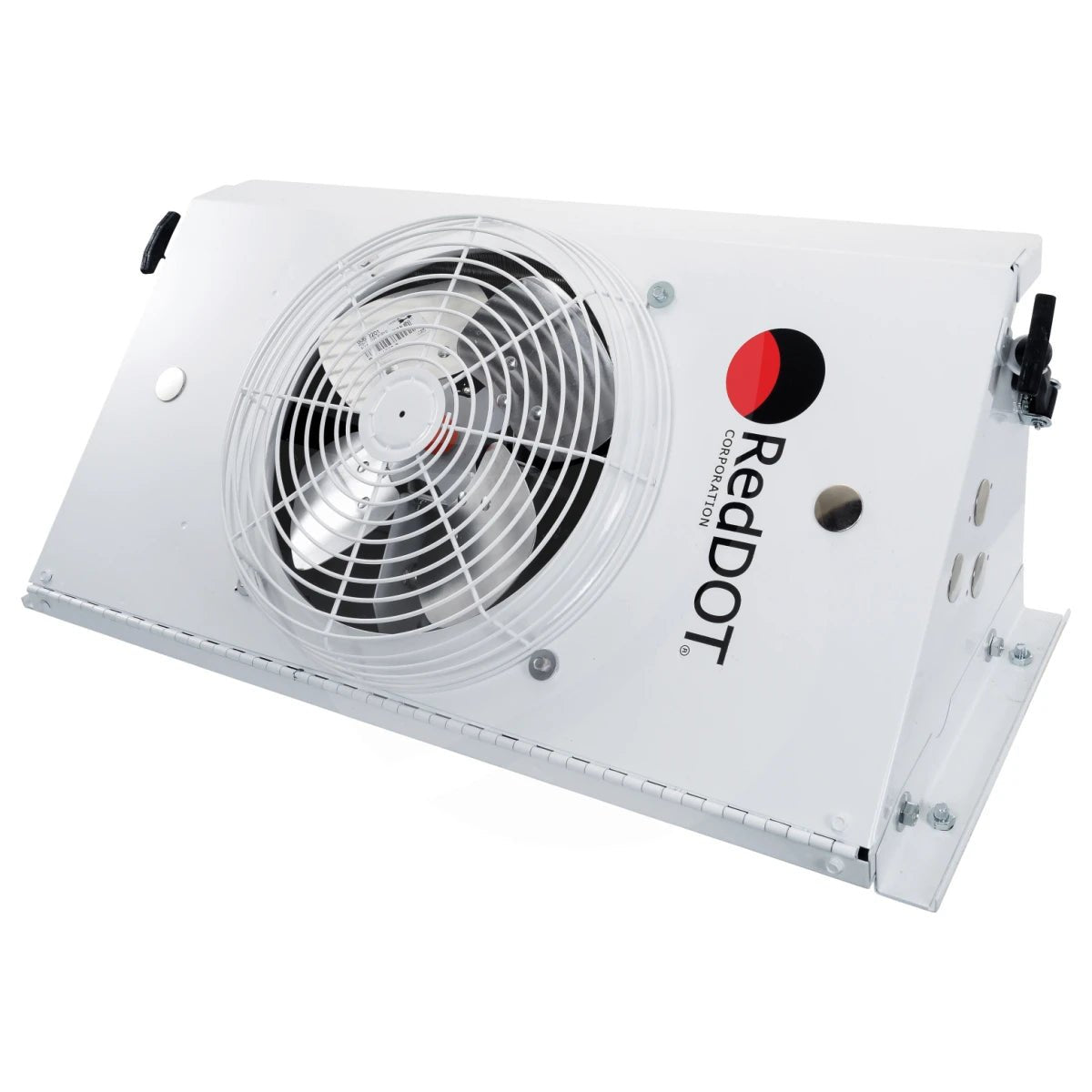

Red Dot R9720 Condenser Unit 24V

Red Dot R9720 Condenser Unit 24V

Remote Mounted Condenser For construction, mining and agriculture applications The R-9720 is the most versatile and well built remote mount condenser available. A unique design allows for installation on top of a horizontal surface or hung below a roof or floor panel. This change is accomplished by changing two hose connectors. Suitable for use in off-road applications or on medium duty trucks or specialty vehicles where a radiator mount or rooftop condenser cannot be used.

Specifications:

• 24V Rooftop Condenser Assembly
• B.T.U./hr: 27,000
• Current draw: 10.5A @ 13.6V / 5.3A @ 27.2V
• Weight: 16.8kg
• Casing: steel
• Width: 686 mm
• Depth: 311 mm
• Height: 290 mm
