Red Dot R8545 Evaporator Unit 24V

Red Dot R8545 Evaporator Unit 24V

SKU: EV-12884

Regular price $3,459.00 AUD
Regular price Sale price $3,459.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

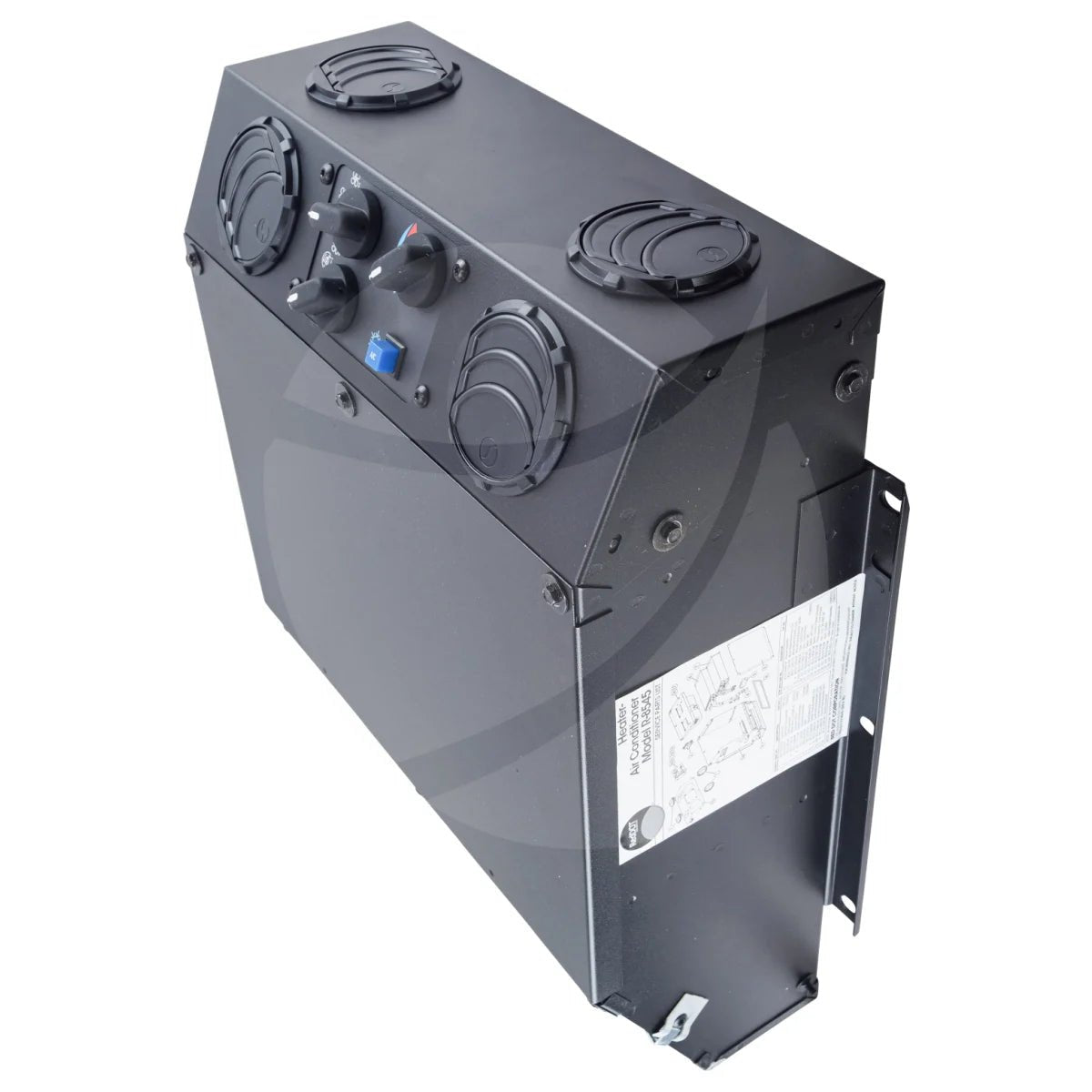

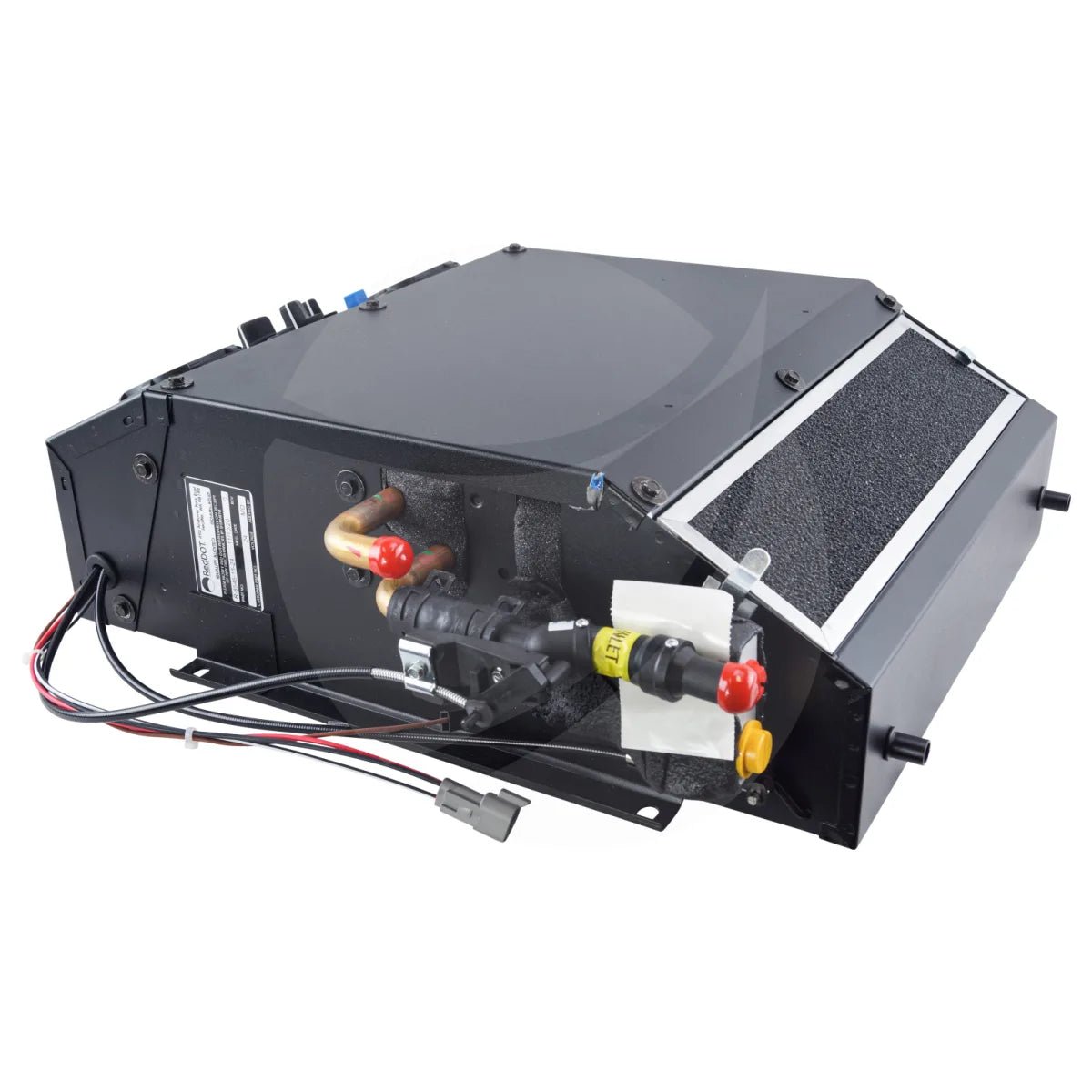

Red Dot R8545 Evaporator Unit 24V

Compact and powerful, the R-8545 produces the highest output of any off-road unit its size. Its performance and durability make the R-8545 the ideal choice for off-highway equipment cabs where space is a premium and reliability is essential. Engineered to filter in-cab air as well as incoming outside air when pressurization is required. Applications include construction, mining and agriculture.


  • Cooling BTU: 18,000 BTU/Hr with 36°F (5.3 kW with 2.2°C) refrigerant temperature and 80°F (26.7°C) wet bulb entering air
  • Air Flow: 265 CFM (450 m3/h)
  • Weight: 34 lbs. (15 kg)
  • Motor: Totally sealed, 12 or 24 VDC permanent magnet type with long life brushes, and heavy duty pre-lubricated sealed ball bearings
  • Current Draw: 8 amps @ 27.2 VDC (includes 2 amps for A/C clutch)
  • Controls: Three-speed fan switch, fixed setting A/C thermostat, cable controlled water valve
  • Refrigerant: R-134a
  • Power: 24 VDC
  • Dimensions: 462 x 518 x 172 mm
