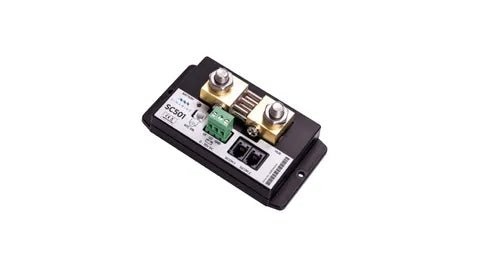

Battery Shunt 500A 2 x Volt 1 x Resist

Active shunt for PICO battery monitor with:

• 1x voltage
• 1x temperature
• 1x current sensor up to 500A for up to 75V systems

It can also be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators like shore power chargers and solar panels.

Operating

• Voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 0.8 mA

Current measuring range

• Per channel 0,1 – 320 A
• Accuracy ± 0,6 %
• Resolution 0,01 A
• Sampling rate 100 ms
• Maximal current
• Continuous 300 A
• Peak current (<1 min) 400 A
• Peak current (<5 min) 700 A
• Voltage drop at 300 A 50 mV

• Maximal voltage on connections 35 V

Voltage inputs

• Range 0 – 75 V
• Resolution 1 mV
• Accuracy ± 0,2 %
• Sampling rate 100 ms
• Temperature sensor – NTC 10k
• Range -15 – +80 °C
• Accuracy (-10 – 60 °C, 14 – 140 °F) ± 3,0%
• Connectivity Up to
• Batteries 1
• Temperature sensors 1
• Voltage sensors 2
• SiCOM RJ9 Sockets 2
• Installation and Dimension
• Dimensions (length x width x depth) 118 x 40 x 52 mm
• Battery Connection M 10 bolts
