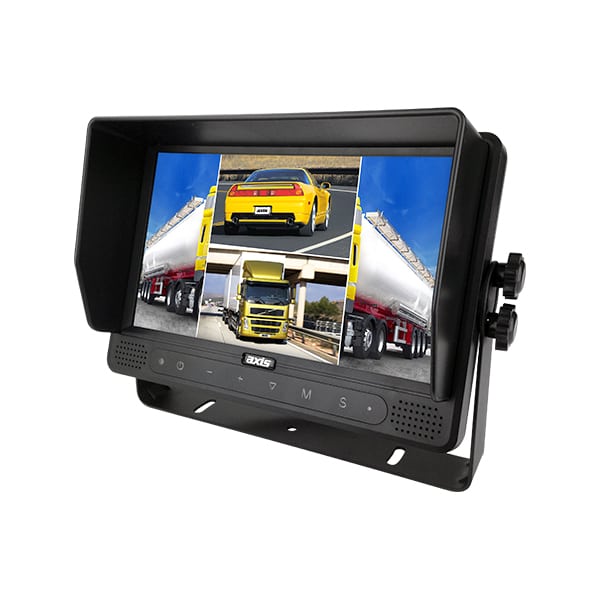

Axis 9" Quad Monitor

MONITOR
– LCD Size: 9”
– Resolution: 800 x 480 RGB (60Hz)
– Touch Screen: Resistive Touch; Can recognize up, down, left, right side “swipe”; Two-Point touch for channel switching
– Touch Buttons: Yes
– Backlighting Adjustment: 4 Manual Levels, 1 Auto Level
– System Format: PAL/NTSC
– Onboard Loudspeaker: Yes
– Mirror Orientation: Horizontal, Vertical, Horizontal-Vertical, Off
– Camera Image Display Mode: Single (Left/Right/Front/Back), Dual, Triple, Quad, Picture In Picture (1/2/3), Trefoil, H-Split, Y-Split
– Camera Image Adjustment: Brightness, Contrast, Colour, Tint
– Menu Languages: English, Francais, Nederlands, Espanol, Deutsch, Italiano
– Trigger Lines: 5
– Trigger Priority: Yes
– Auto Scan: Yes
– Reverse Warning Gauge: Yes
– Automatic Start-up: Yes when triggered under standby
– Automatic Switch to Trigger Channel: Yes
– Input: 4 x 4-PIN, 1 x RCA A/V
– Output: 1 x RCA A/V
– Operating Voltage Range: 10-32V
– Short-Circuit Protection: Yes
– Dimensions: 232W x 157H x 40D mm

INCLUDED
– Robust Bracket
– Stand Mount
– Sun Cover
– IR Remote
